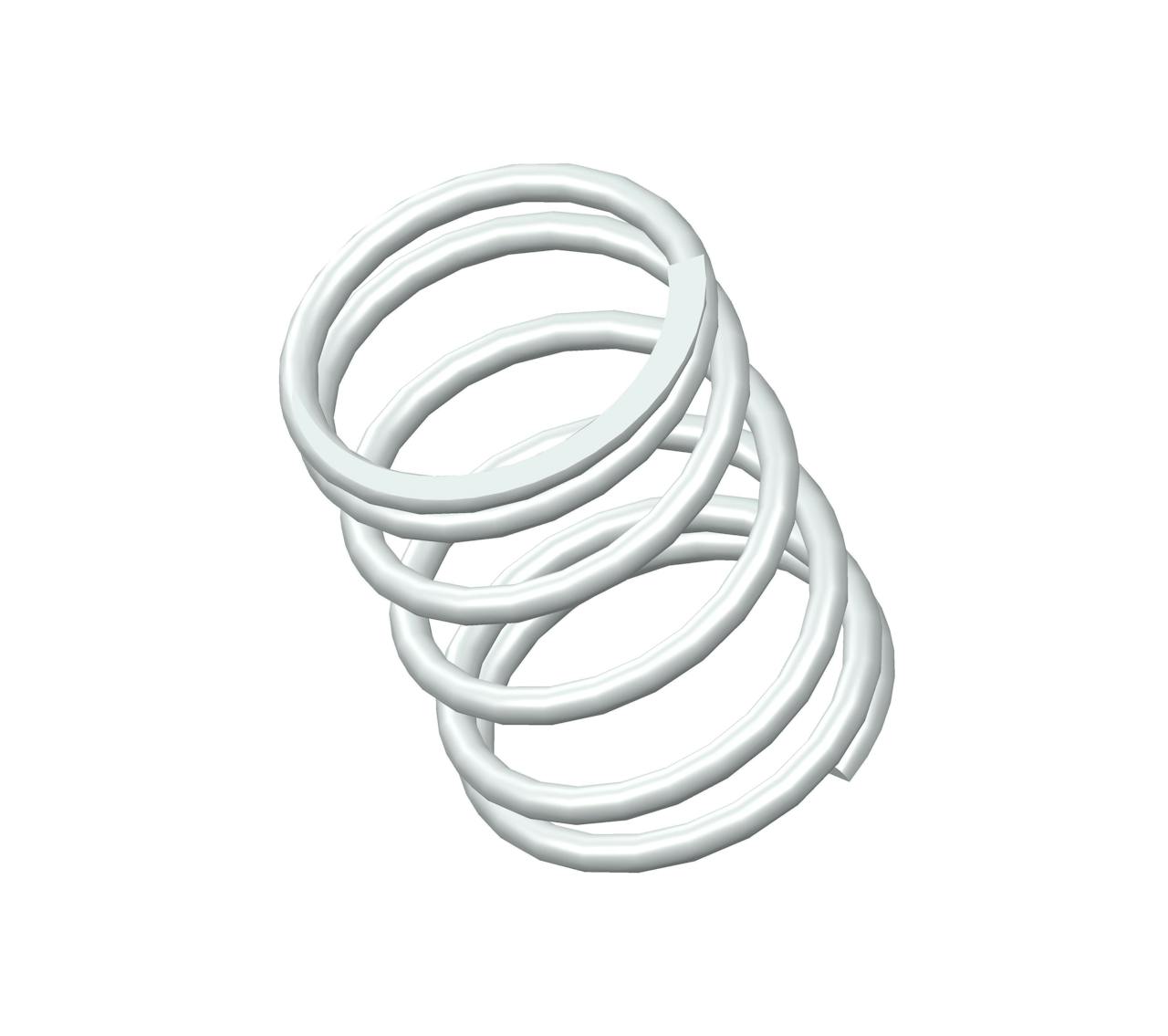

A13-69CS - 1.47" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6.13 coils and closed & ground ends. This spring features an O.D. of 1.078", and an I.D. of 0.894".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name A13-69
Ends Closed & Ground
Finish None
Free Length 1.47 in
Inside Diameter 0.894 in
Material 302/304 Stainless Steel
Outside Diameter 1.078 in
Part Type Standard
Rate 23 lbs/in
SKU A13-69CS
Solid Length 0.56 in
Suggested Max Deflection 0.9 in
Suggested Max Load 21 lbf
Total Coils 6.13
Wire Diameter 0.092 in
The A13-69CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.092" diameter 302/304 stainless steel, the A13-69 spring design exhibits reliable strength across its 6.13 active coils, withstanding repeated compression cycles with a maximum load of 21 lbf without succumbing to fatigue.

We manufacture the A13-69 design to provide a compression spring that is 1.47" long at rest and provides a consistent rate of 23 lbs/in along its recommended maximum of 0.9" deflection. For best results, your application should fully accommodate the inner (0.894") and outer (1.078") diameters of this spring and be designed for its closed & ground end configuration.
