11593CS - 2.81" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

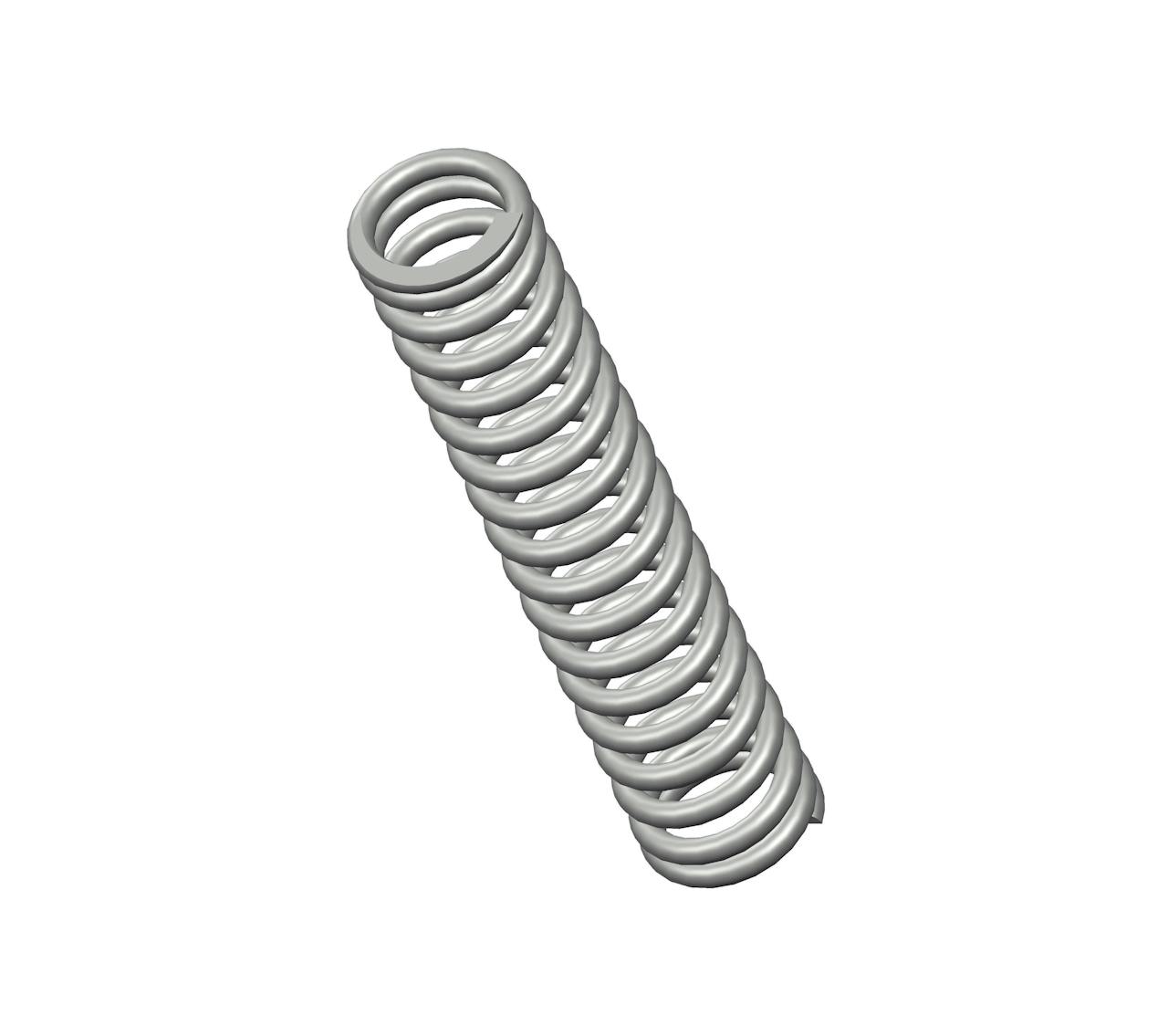

Compression spring manufactured from spring steel with 18 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.386".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11593
Ends Closed & Ground
Finish Gold Iridite
Free Length 2.81 in
Inside Diameter 0.386 in
Material Spring Steel
Outside Diameter 0.546 in
Part Type Standard
Rate 36 lbs/in
SKU 11593CS
Solid Length 1.52 in
Suggested Max Deflection 0.85 in
Suggested Max Load 31 lbf
Total Coils 18
Wire Diameter 0.08 in
The compression spring 11593CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 11593 compression spring design exhibits exceptional tensile strength and resilience.

The 11593 design is manufactured with a free length of 2.81", with an outer diameter of 0.546", an inner diameter of 0.386", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 36 lbs/in.

The 11593CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 11593 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
