M-121CS - 0.66" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

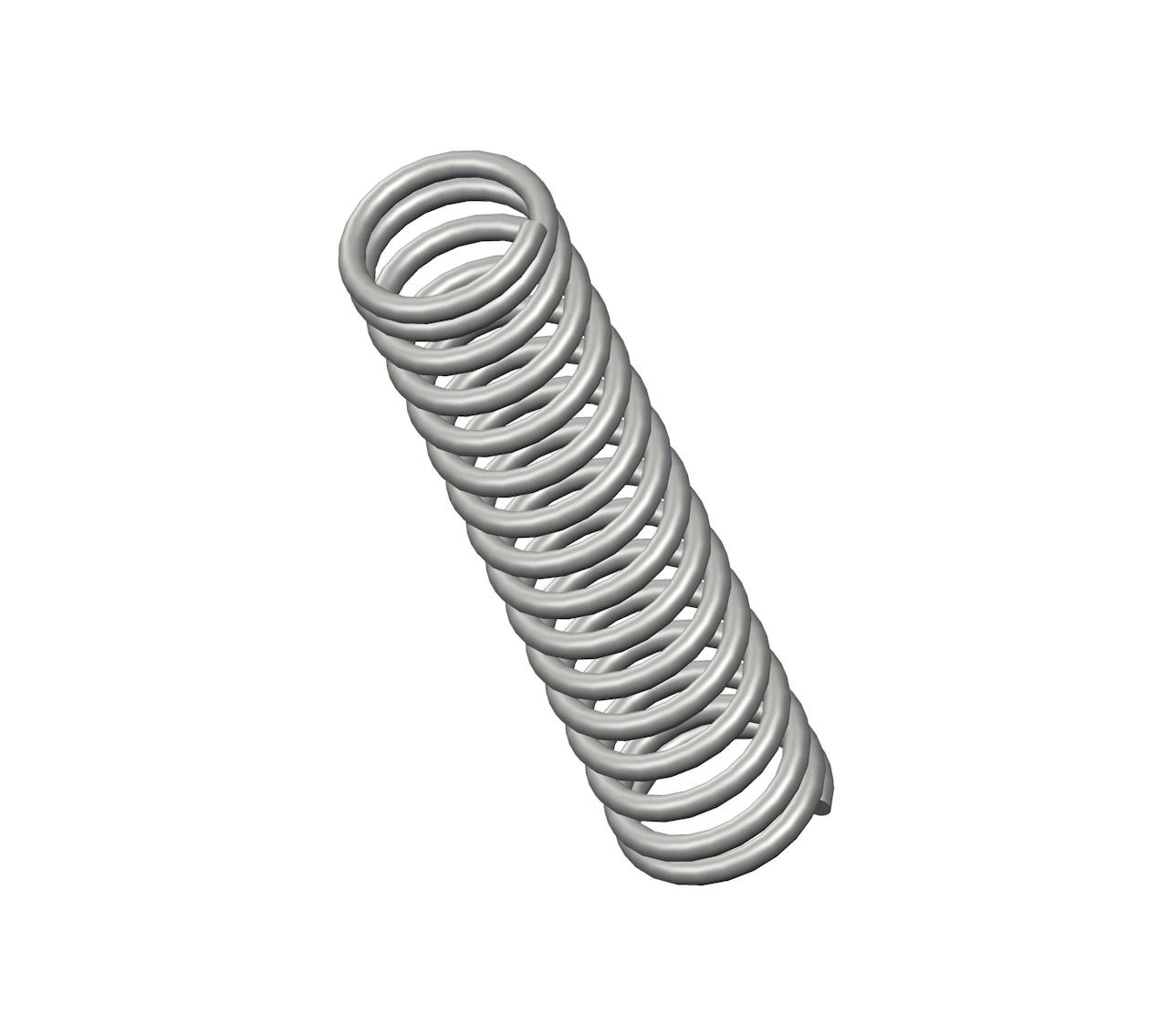

Compression spring manufactured from music wire with 16 coils and closed ends. This spring features an O.D. of 0.156", and an I.D. of 0.118".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-121
Ends Closed
Finish Black Oxide
Free Length 0.66 in
Inside Diameter 0.118 in
Material Music Wire
Outside Diameter 0.156 in
Part Type Standard
Rate 5.2 lbs/in
SKU M-121CS
Solid Length 0.32 in
Suggested Max Deflection 0.33 in
Suggested Max Load 1.7 lbf
Total Coils 16
Wire Diameter 0.019 in
The compression spring M-121CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the M-121 compression spring design exhibits exceptional tensile strength and resilience.

The M-121 design is manufactured with a free length of 0.66", with an outer diameter of 0.156", an inner diameter of 0.118", and a total of 16 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.2 lbs/in.

The M-121CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring M-121 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
