M-109CS - 0.66" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

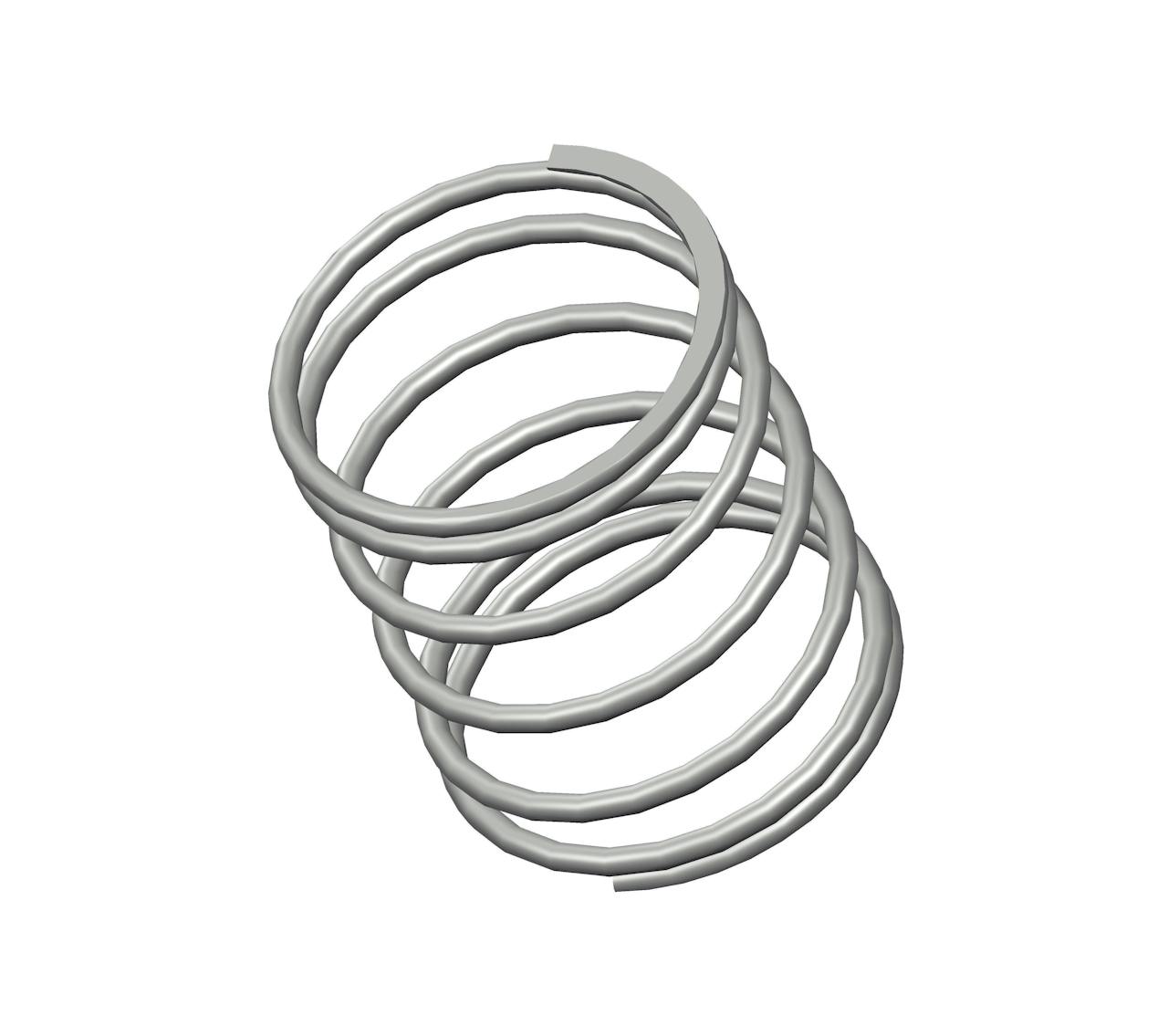

Compression spring manufactured from spring steel with 6.5 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.48".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name M-109
Ends Closed & Ground
Finish None
Free Length 0.66 in
Inside Diameter 0.48 in
Material Spring Steel
Outside Diameter 0.546 in
Part Type Standard
Rate 2.8 lbs/in
SKU M-109CS
Solid Length 0.21 in
Suggested Max Deflection 0.44 in
Suggested Max Load 1.2 lbf
Total Coils 6.5
Wire Diameter 0.033 in
The compression spring M-109CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the M-109 compression spring design exhibits exceptional tensile strength and resilience.

The M-109 design is manufactured with a free length of 0.66", with an outer diameter of 0.546", an inner diameter of 0.48", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.8 lbs/in.

The M-109CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring M-109 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
