L-86CS - 1.13" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

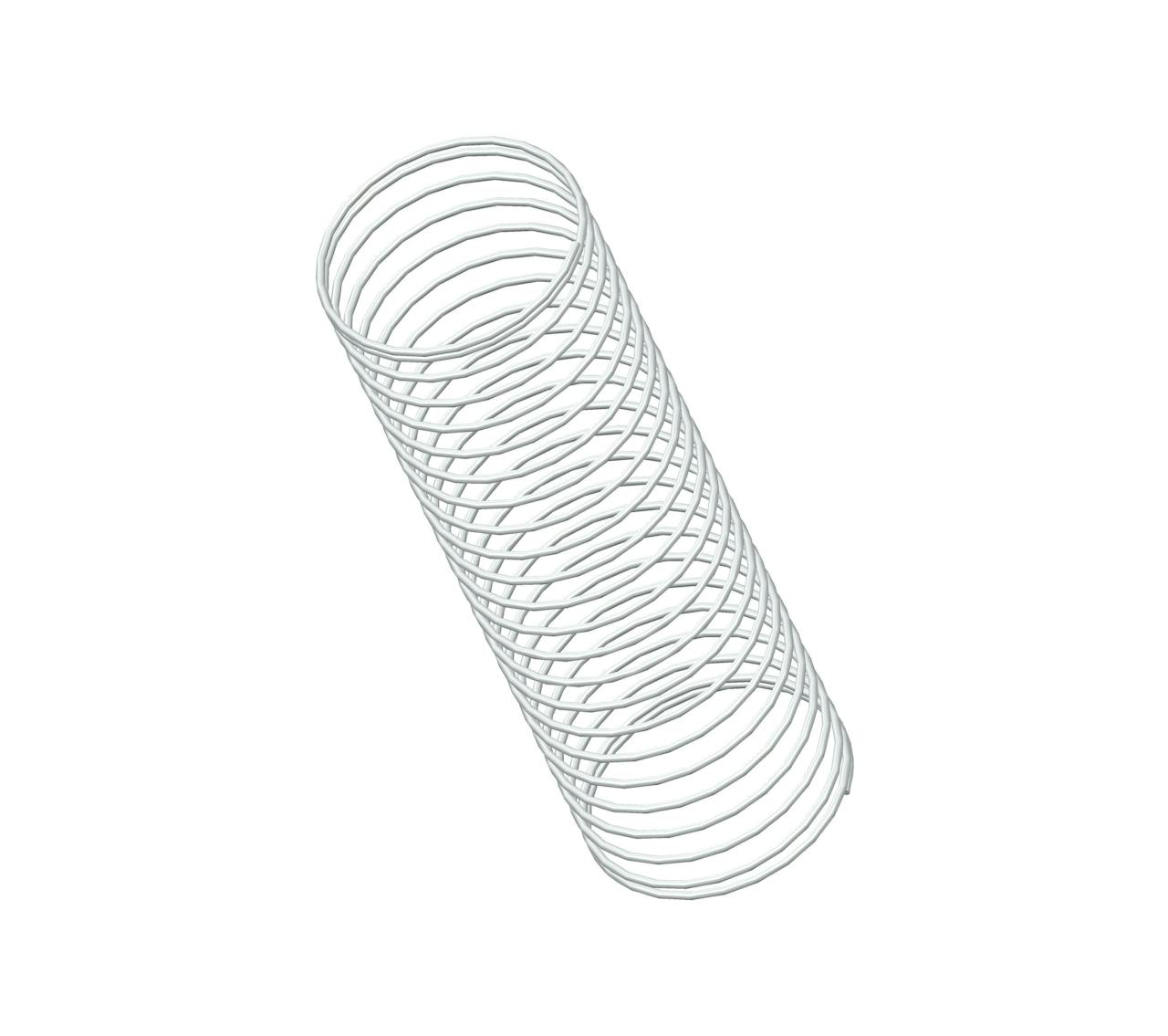

Compression spring manufactured from 302/304 stainless steel with 24 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.338".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name L-86
Ends Closed
Finish None
Free Length 1.13 in
Inside Diameter 0.338 in
Material 302/304 Stainless Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 0.02 lbs/in
SKU L-86CS
Solid Length 0.28 in
Suggested Max Deflection 0.85 in
Suggested Max Load 0.02 lbf
Total Coils 24
Wire Diameter 0.011 in
The compression spring L-86CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the L-86 compression spring design exhibits exceptional tensile strength and resilience.

The L-86 design is manufactured with a free length of 1.13", with an outer diameter of 0.36", an inner diameter of 0.338", and a total of 24 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.02 lbs/in.

The L-86CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring L-86 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
