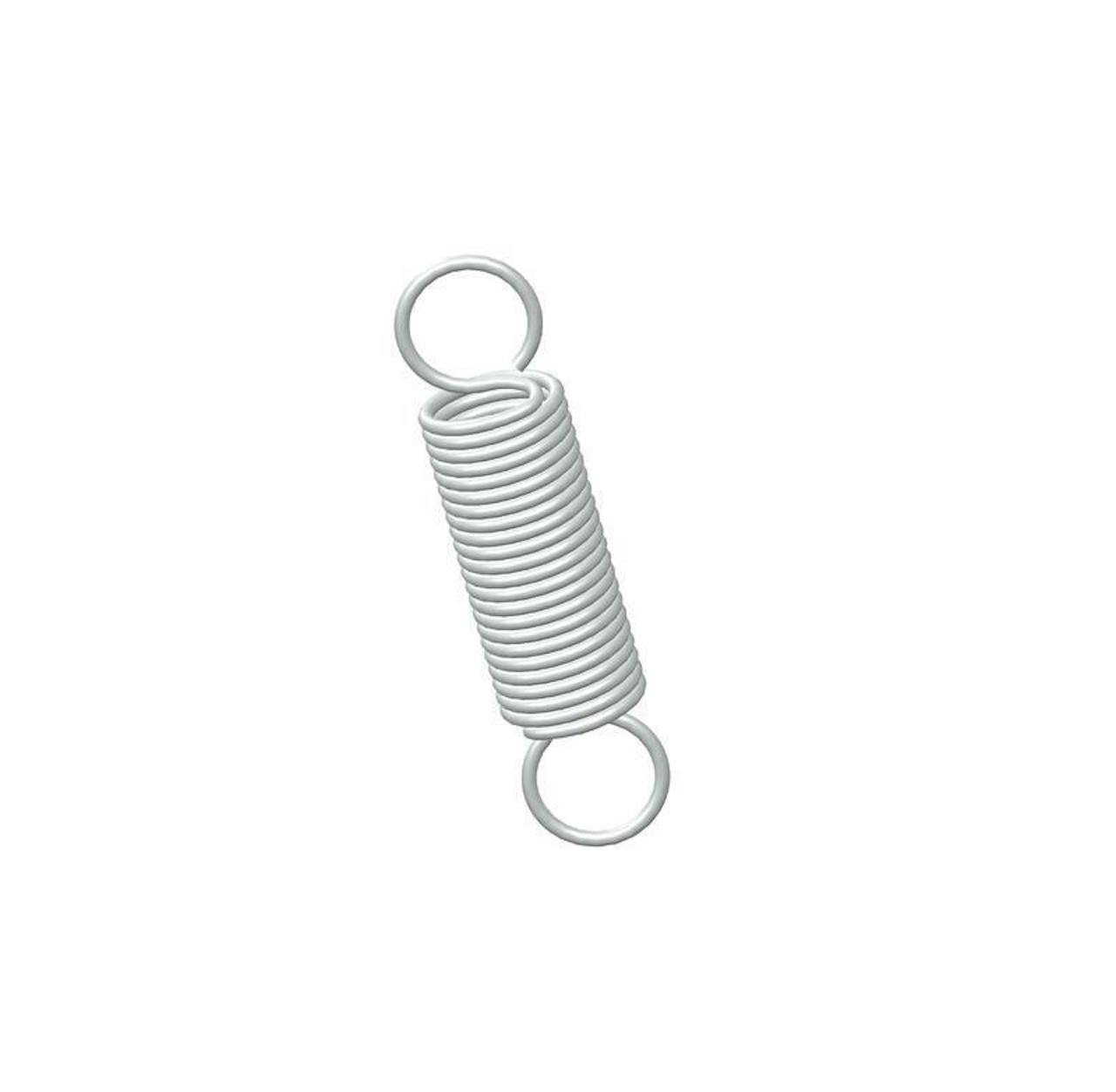

80477SCS - 1.5 Inch 302/304 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 302/304 Stainless Steel. This spring features an O.D. of 0.359 Inch and an initial tension of 0.5 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 80477S
Ends Full Loop
Finish None
Initial Tension 0.5 lb
Length 1.5 in
Material 302/304 Stainless Steel
Outside Diameter 0.359 in
Part Type Standard
Rate 2.8 lbs/in
SKU 80477SCS
Sugg Max Deflection 1.4 in
Sugg Max Load 4.5 lbf
Wire Diameter 0.037 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 80477S
Ends Full Loop
Finish None
Initial Tension 0.23 kg
Length 38.1 mm
Material 302/304 Stainless Steel
Outside Diameter 9.12 mm
Part Type Standard
Rate 0.49 N/mm
SKU 80477SCS
Sugg Max Deflection 35.56 mm
Sugg Max Load 20.02 N
Wire Diameter 0.94 mm
