72796SCS - 2.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

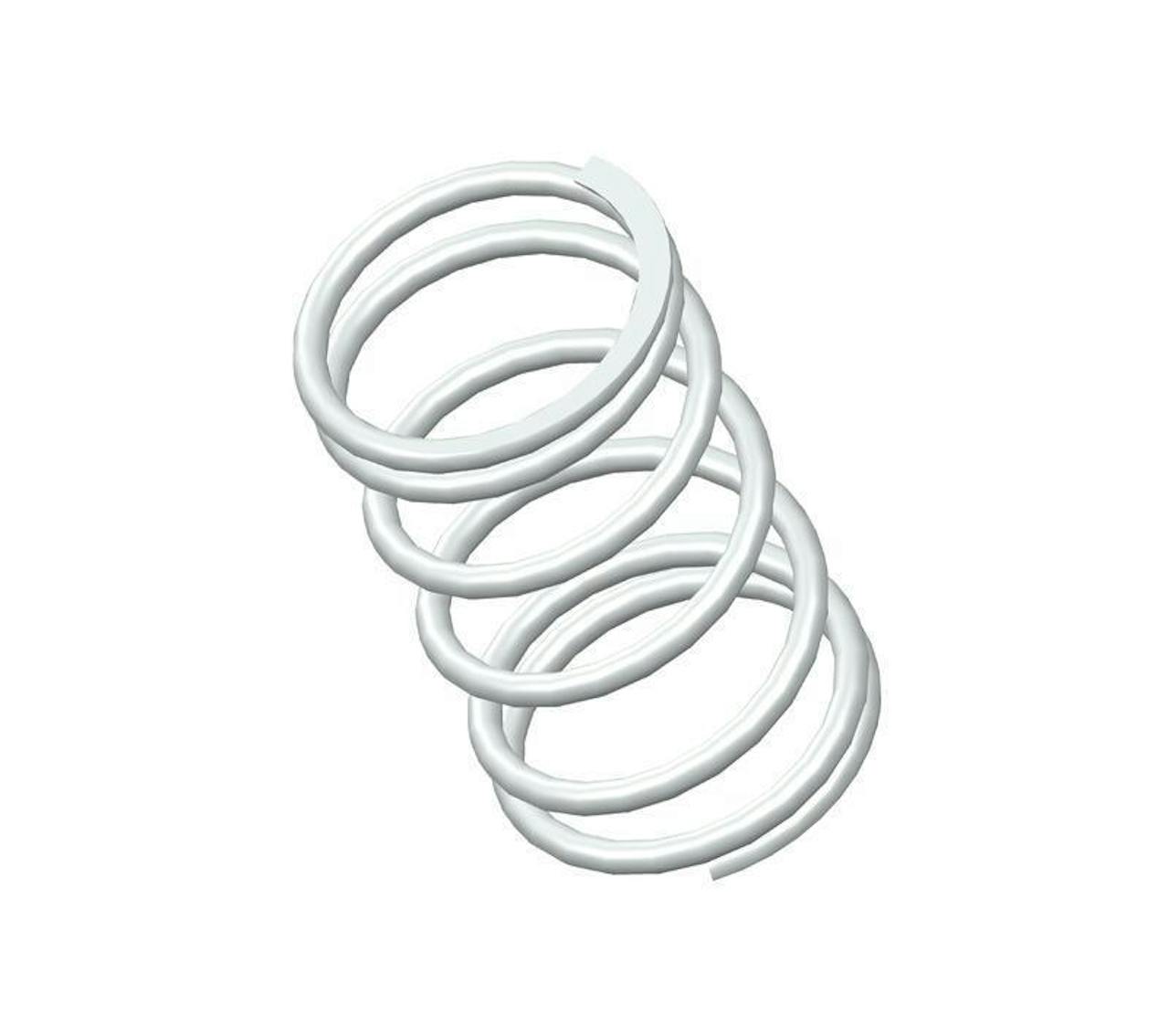

Compression spring manufactured from 302/304 stainless steel with 6.38 coils and closed & ground ends. This spring features an O.D. of 1.46", and an I.D. of 1.21".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 72796S
Ends Closed & Ground
Finish None
Free Length 2.5 in
Inside Diameter 1.21 in
Material 302/304 Stainless Steel
Outside Diameter 1.46 in
Part Type Standard
Rate 29 lbs/in
SKU 72796SCS
Solid Length 0.8 in
Suggested Max Deflection 1.4 in
Suggested Max Load 39 lbf
Total Coils 6.38
Wire Diameter 0.125 in
The compression spring 72796SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 72796S compression spring design exhibits exceptional tensile strength and resilience.

The 72796S design is manufactured with a free length of 2.5", with an outer diameter of 1.46", an inner diameter of 1.21", and a total of 6.38 coils, expertly designed to deliver consistent compression characteristics including a rate of 29 lbs/in.

The 72796SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 72796S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
