Century Spring

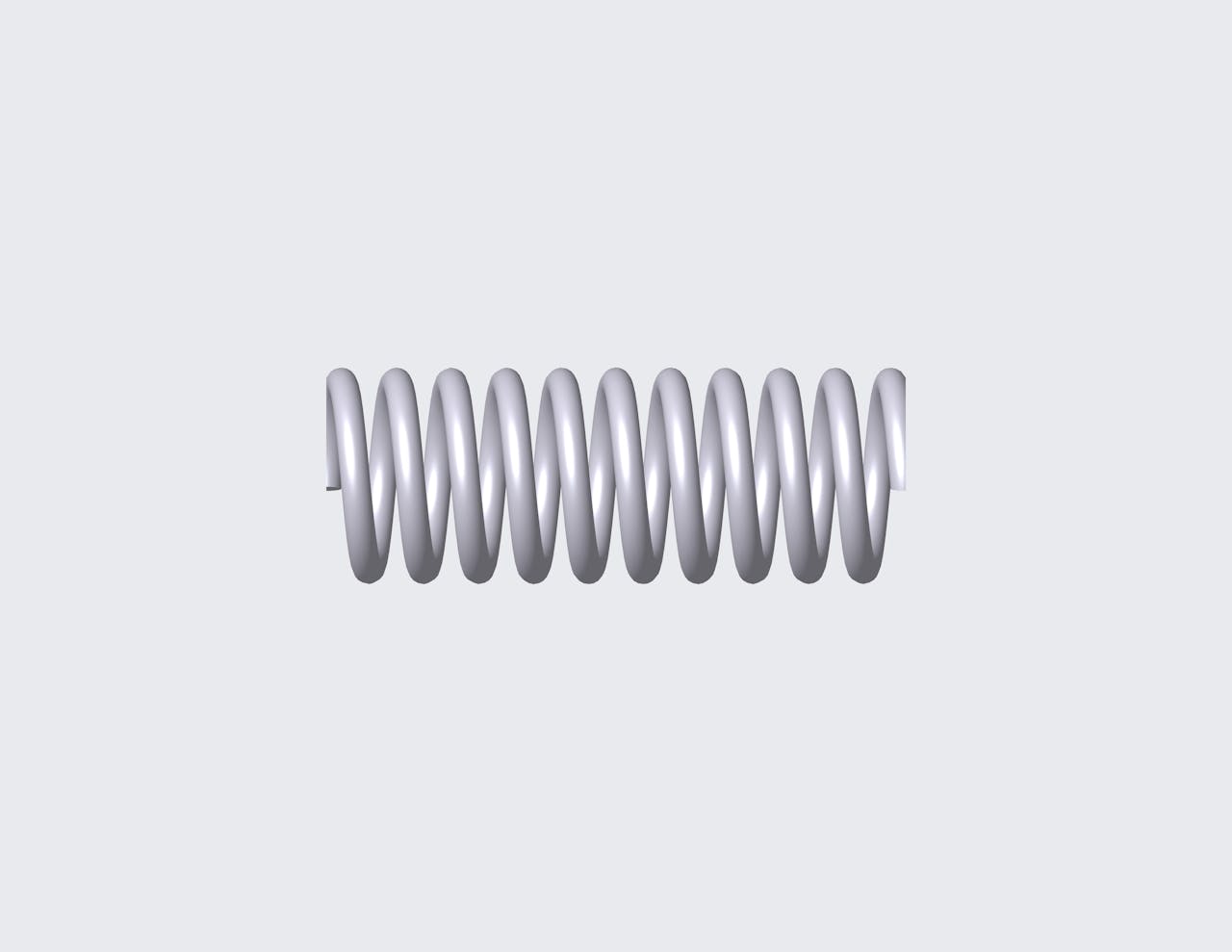

50345SCS - 1.22" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.457", and an I.D. of 0.332".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50345S
Ends Closed & Ground
Finish Passivated
Free Length 1.22 in
Inside Diameter 0.332 in
Material 316 Stainless Steel
Outside Diameter 0.457 in
Rate 40.315 lbs/in
SKU 50345SCS
Solid Length 0.63 in
Suggested Max Deflection 0.374 in
Suggested Max Load 15.09 lbf
Total Coils 10
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50345S
Ends Closed & Ground
Finish Passivated
Free Length 30.99 mm
Inside Diameter 8.43 mm
Material 316 Stainless Steel
Outside Diameter 11.61 mm
Rate 7.06 N/mm
SKU 50345SCS
Solid Length 16 mm
Suggested Max Deflection 9.5 mm
Suggested Max Load 67.12 N
Total Coils 10
Wire Diameter 1.59 mm
The 50345S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50345SCS compression spring is designed with a free length of 0.827" total of 7 coils, and a rate of 64.504 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50345S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
