2854CS - 1.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

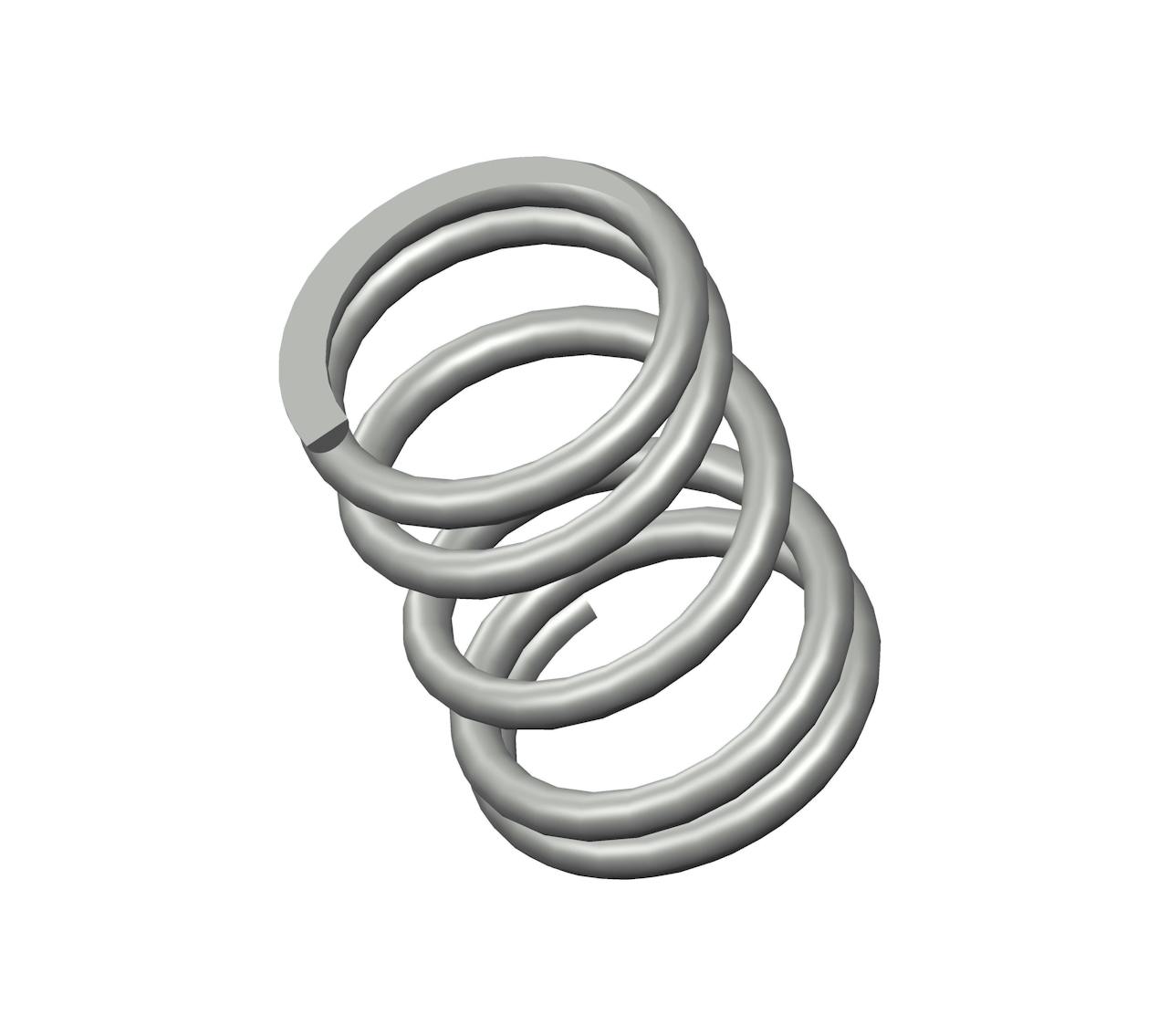

Compression spring manufactured from spring steel with 5.25 coils and closed & ground ends. This spring features an O.D. of 1.062", and an I.D. of 0.822".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2854
Ends Closed & Ground
Finish Zinc
Free Length 1.5 in
Inside Diameter 0.822 in
Material Spring Steel
Outside Diameter 1.062 in
Part Type Standard
Rate 114 lbs/in
SKU 2854CS
Solid Length 0.64 in
Suggested Max Deflection 0.45 in
Suggested Max Load 51 lbf
Total Coils 5.25
Wire Diameter 0.12 in
The 2854CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.12" diameter spring steel, the 2854 spring design exhibits reliable strength across its 5.25 active coils, withstanding repeated compression cycles with a maximum load of 51 lbf without succumbing to fatigue.

We manufacture the 2854 design to provide a compression spring that is 1.5" long at rest and provides a consistent rate of 114 lbs/in along its recommended maximum of 0.45" deflection. For best results, your application should fully accommodate the inner (0.822") and outer (1.062") diameters of this spring and be designed for its closed & ground end configuration.
