2825CS - 2.03" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

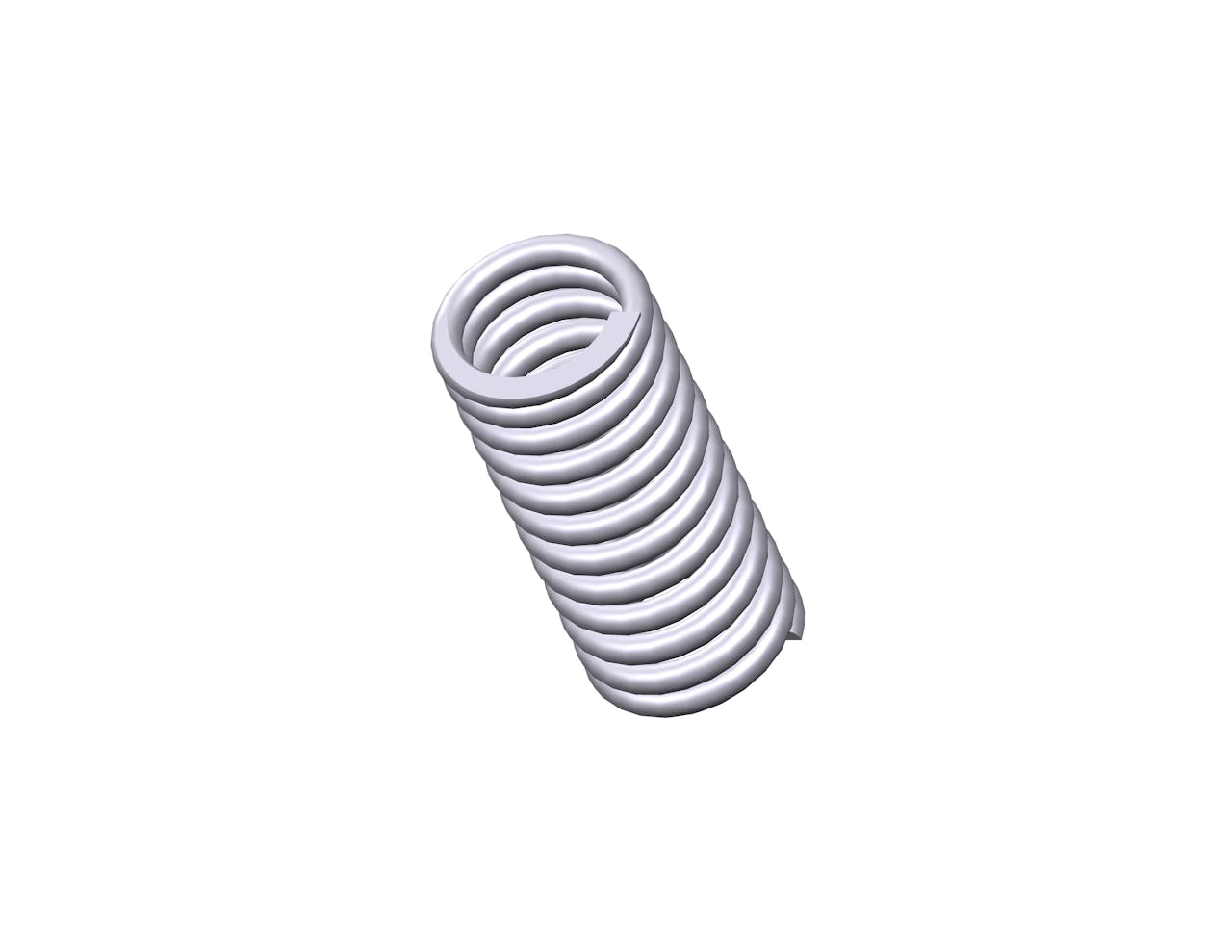

Compression spring manufactured from music wire with 11.13 coils and closed & ground ends. This spring features an O.D. of 0.875", and an I.D. of 0.635".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2825
Ends Closed & Ground
Finish Gold Iridite
Free Length 2.03 in
Inside Diameter 0.635 in
Material Music Wire
Outside Diameter 0.875 in
Part Type Standard
Rate 76 lbs/in
SKU 2825CS
Solid Length 1.34 in
Suggested Max Deflection 0.69 in
Suggested Max Load 53 lbf
Total Coils 11.13
Wire Diameter 0.12 in
The 2825CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.12" diameter music wire, the 2825 spring design exhibits reliable strength across its 11.13 active coils, withstanding repeated compression cycles with a maximum load of 53 lbf without succumbing to fatigue.

We manufacture the 2825 design to provide a compression spring that is 2.03" long at rest and provides a consistent rate of 76 lbs/in along its recommended maximum of 0.69" deflection. For best results, your application should fully accommodate the inner (0.635") and outer (0.875") diameters of this spring and be designed for its closed & ground end configuration.
