2562CS - 0.56" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

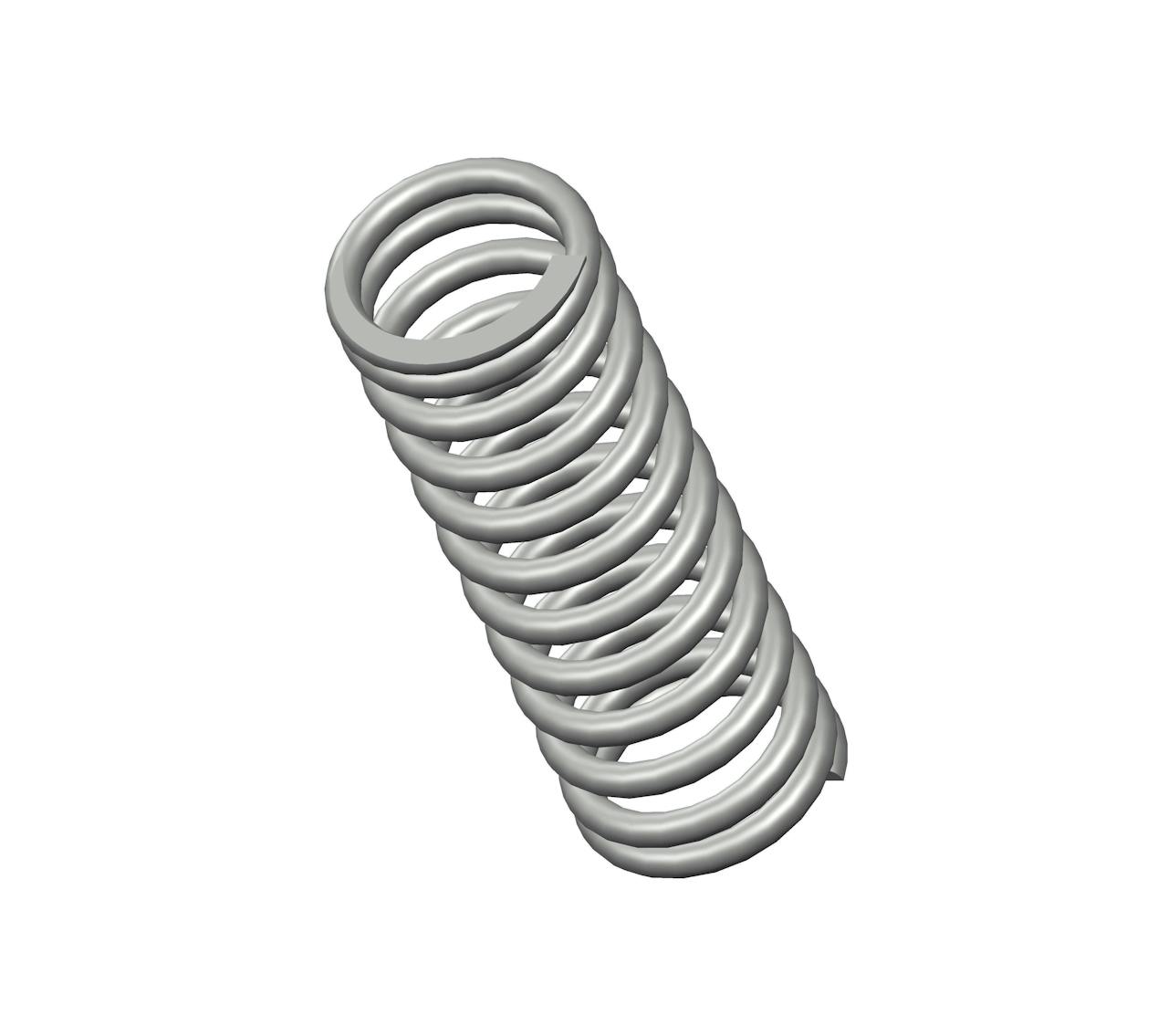

Compression spring manufactured from music wire with 12 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.14".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 2562
Ends Closed & Ground
Finish Zinc
Free Length 0.56 in
Inside Diameter 0.14 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 11 lbs/in
SKU 2562CS
Solid Length 0.29 in
Suggested Max Deflection 0.27 in
Suggested Max Load 3 lbf
Total Coils 12
Wire Diameter 0.024 in
The compression spring 2562CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 2562 compression spring design exhibits exceptional tensile strength and resilience.

The 2562 design is manufactured with a free length of 0.56", with an outer diameter of 0.188", an inner diameter of 0.14", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 11 lbs/in.

The 2562CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 2562 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
