11359CS - 1.63" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

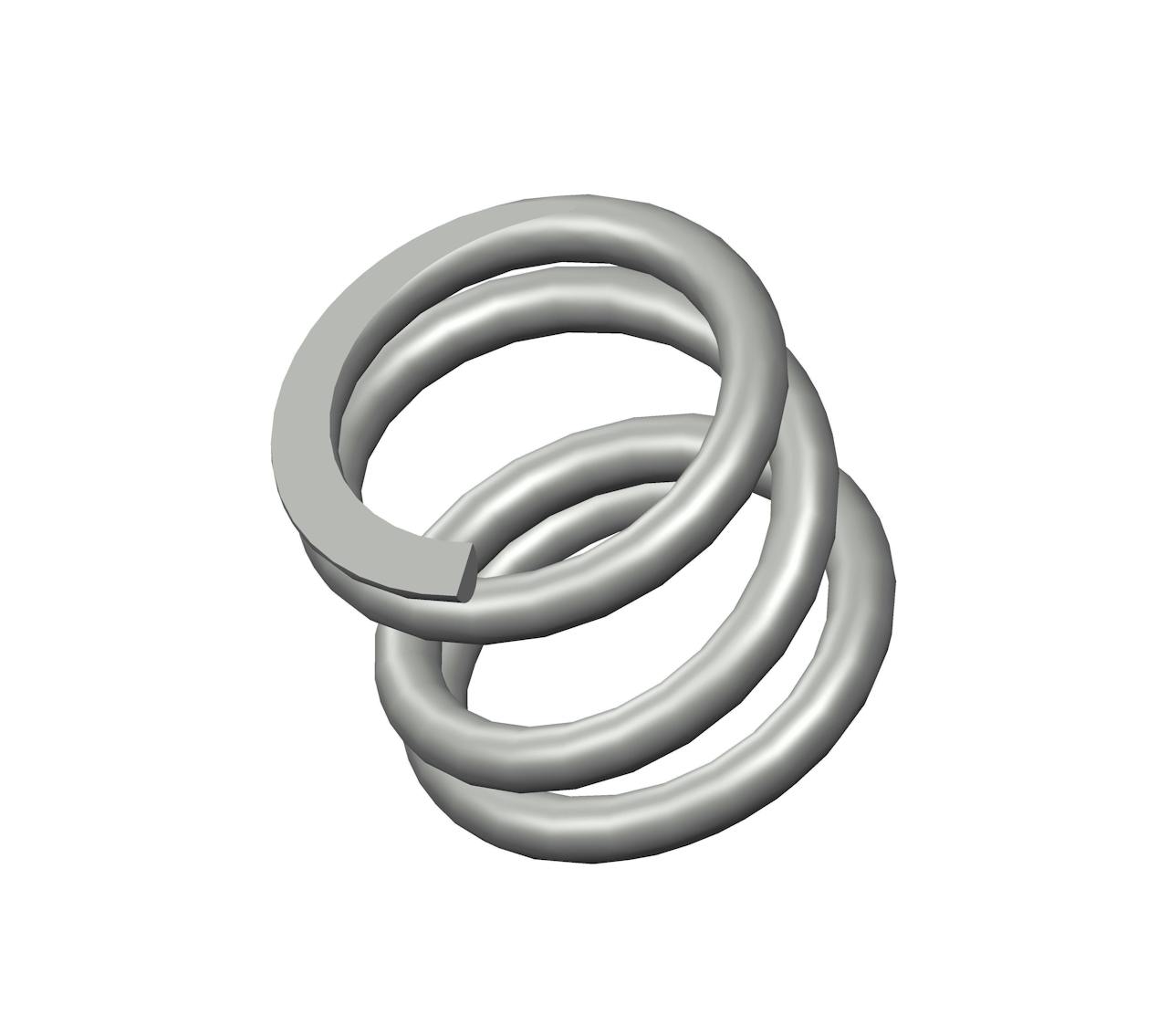

Compression spring manufactured from spring steel with 3.5 coils and closed & ground ends. This spring features an O.D. of 1.906", and an I.D. of 1.42".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 11359
Ends Closed & Ground
Finish Zinc
Free Length 1.63 in
Inside Diameter 1.42 in
Material Spring Steel
Outside Diameter 1.906 in
Part Type Standard
Rate 727 lbs/in
SKU 11359CS
Solid Length 0.85 in
Suggested Max Deflection 0.28 in
Suggested Max Load 205 lbf
Total Coils 3.5
Wire Diameter 0.243 in
The 11359CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.243" diameter spring steel, the 11359 spring design exhibits reliable strength across its 3.5 active coils, withstanding repeated compression cycles with a maximum load of 205 lbf without succumbing to fatigue.

We manufacture the 11359 design to provide a compression spring that is 1.63" long at rest and provides a consistent rate of 727 lbs/in along its recommended maximum of 0.28" deflection. For best results, your application should fully accommodate the inner (1.42") and outer (1.906") diameters of this spring and be designed for its closed & ground end configuration.
