10954CS - 0.66" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

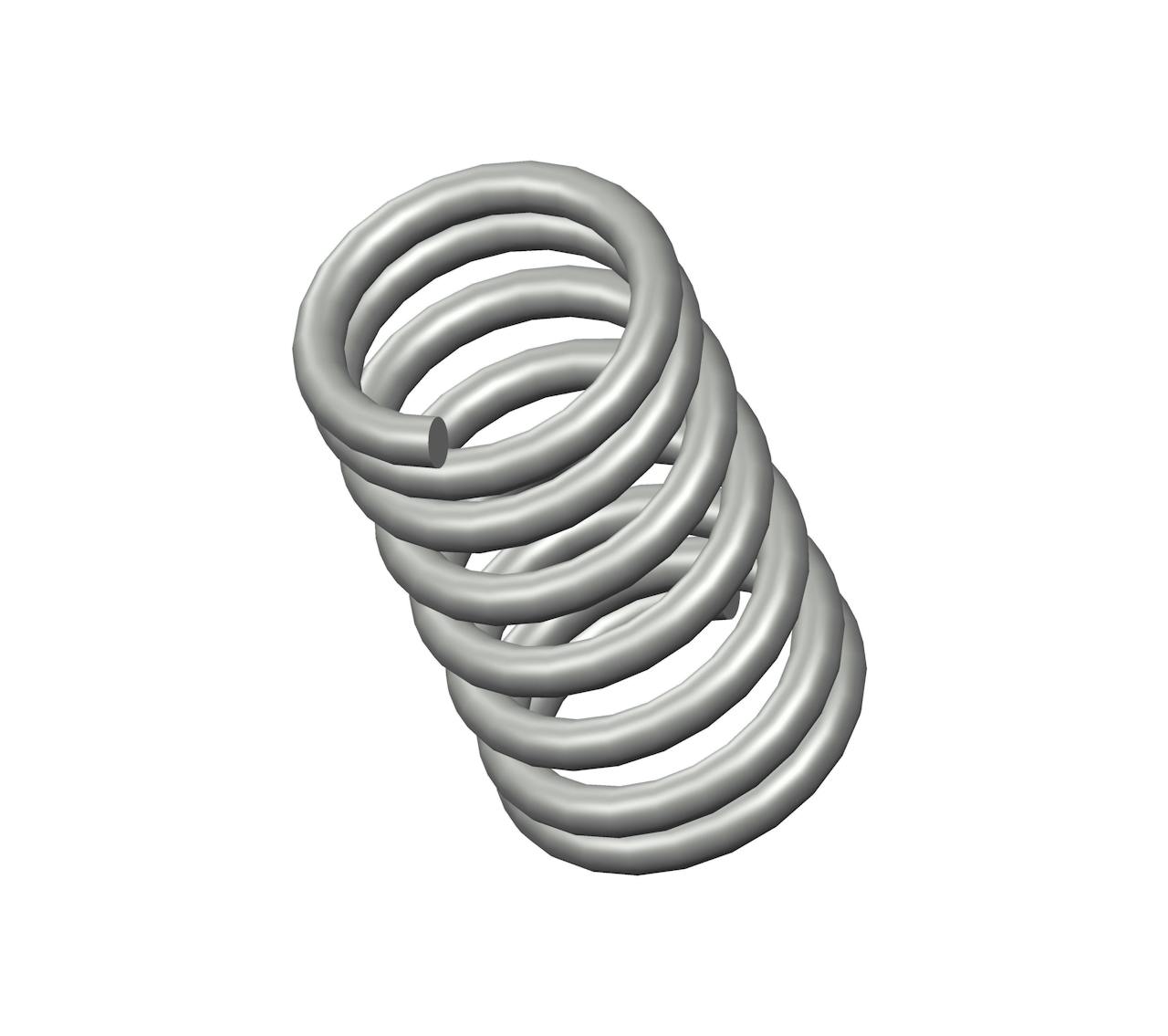

Compression spring manufactured from spring steel with 7.5 coils and closed ends. This spring features an O.D. of 0.36", and an I.D. of 0.266".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 10954
Ends Closed
Finish None
Free Length 0.66 in
Inside Diameter 0.266 in
Material Spring Steel
Outside Diameter 0.36 in
Part Type Standard
Rate 42 lbs/in
SKU 10954CS
Solid Length 0.4 in
Suggested Max Deflection 0.26 in
Suggested Max Load 11 lbf
Total Coils 7.5
Wire Diameter 0.047 in
The compression spring 10954CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the 10954 compression spring design exhibits exceptional tensile strength and resilience.

The 10954 design is manufactured with a free length of 0.66", with an outer diameter of 0.36", an inner diameter of 0.266", and a total of 7.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 42 lbs/in.

The 10954CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 10954 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
