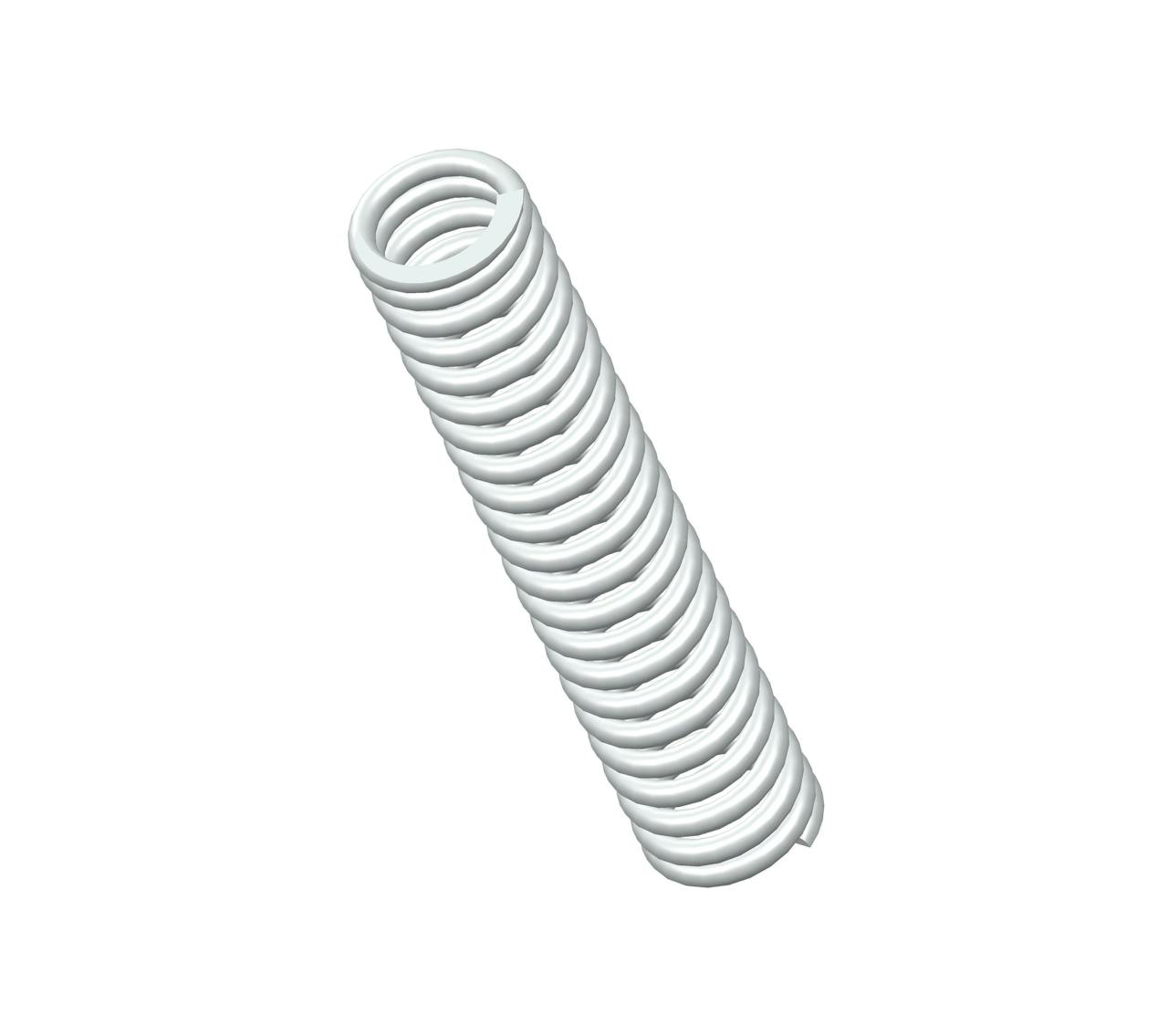

S-839CS - 1.06" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 22.1 coils and closed & ground ends. This spring features an O.D. of 0.203", and an I.D. of 0.143".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-839 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.06 in |
| Inside Diameter | 0.143 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.203 in |
| Part Type | Standard |
| Rate | 9.9 lbs/in |
| SKU | S-839CS |
| Solid Length | 0.66 in |
| Suggested Max Deflection | 0.4 in |
| Suggested Max Load | 3.9 lbf |
| Total Coils | 22.1 |
| Wire Diameter | 0.03 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-839 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 26.92 mm |
| Inside Diameter | 3.63 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.16 mm |
| Part Type | Standard |
| Rate | 1.73 N/mm |
| SKU | S-839CS |
| Solid Length | 16.76 mm |
| Suggested Max Deflection | 10.16 mm |
| Suggested Max Load | 17.35 N |
| Total Coils | 22.1 |
| Wire Diameter | 0.76 mm |
The compression spring S-839CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-839 compression spring design exhibits exceptional tensile strength and resilience.
The S-839 design is manufactured with a free length of 1.06", with an outer diameter of 0.203", an inner diameter of 0.143", and a total of 22.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.9 lbs/in.
The S-839CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-839 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-839 design is manufactured with a free length of 1.06", with an outer diameter of 0.203", an inner diameter of 0.143", and a total of 22.1 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.9 lbs/in.
The S-839CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-839 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
